Product Description

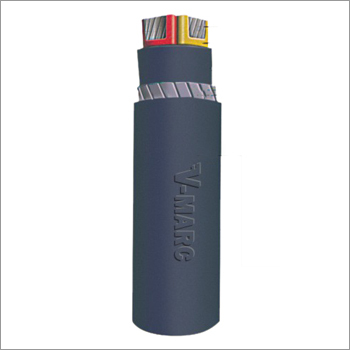

Power Cables
Classification of PVC Compound
| Type | Application | Max. Conductor Temperature |
| A | Insulation | 70ºC |
| C | Insulation | 85ºC |
| ST 1 | Sheath | 70ºC |
| ST2 | Sheath | 90ºC |
Core Identification
For power cables and control cables up to 5 cores, the cores are identified by different colour as per IS:1554
| Single Core | Red, Black, Yellow or Blue |
| 2 Core | Red and Black |
| 3 Core | Red, Yellow and Blue |
| 3 Core ½ | Red, Yellow, Blue and reduced neutral core in Black |
| 4 Core | Red, Yellow, Blue, Black |
| 5 Core | Red, Yellow, Blue, Black and Grey |
Where the number of cores exceed 5, two adjacent cores are blue for reference and yellow for direction in each layer. The remaining cores in each layer are grey.
On specific request we can also provide core numbering for control cables.
Product Code
- As per IS:1554 / Part-I / 1988, the product is coded by alphabets: Aluminium Conductor (No abbreviation are used for copper.): A
- PVC insulation: Y
- Steel round wire armour: W
- Steel strip armour: F
- Steel double round wire armour: WW
- Steel double strip armour: FF
- PVC outer sheath: Y
- AI wire armour: AW
- This product code is stenciled on the surface of the drum flange.

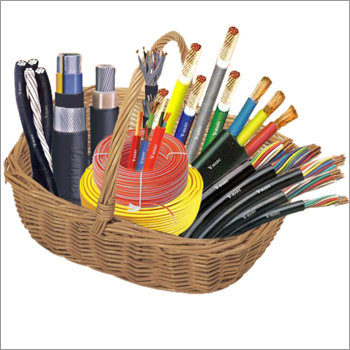

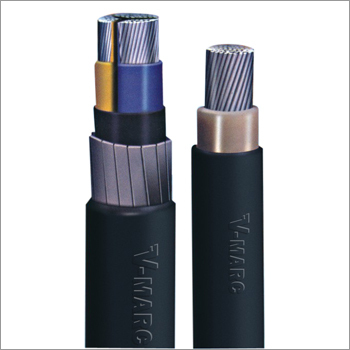

Other Products in 'Wires/Cables & Accessories' category
